Tubular Round Slings (TRS)

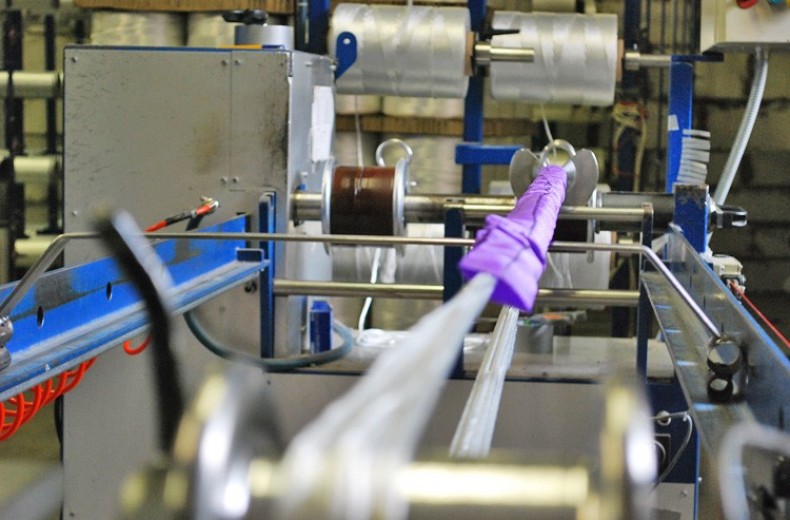

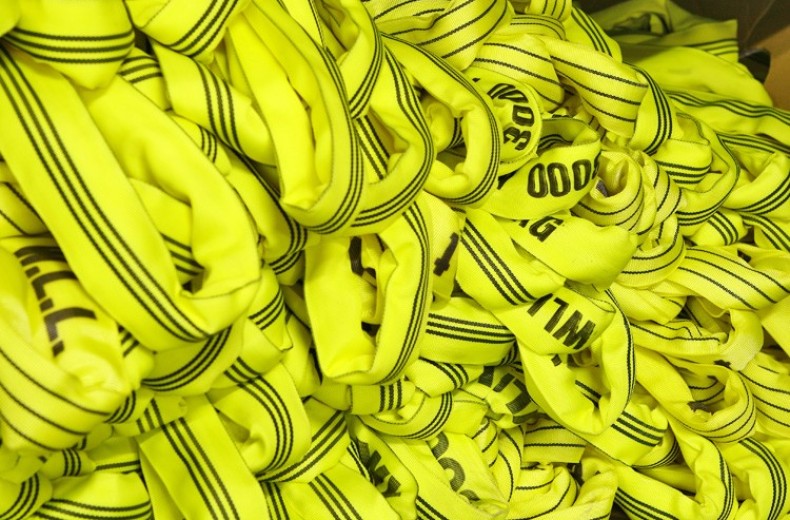

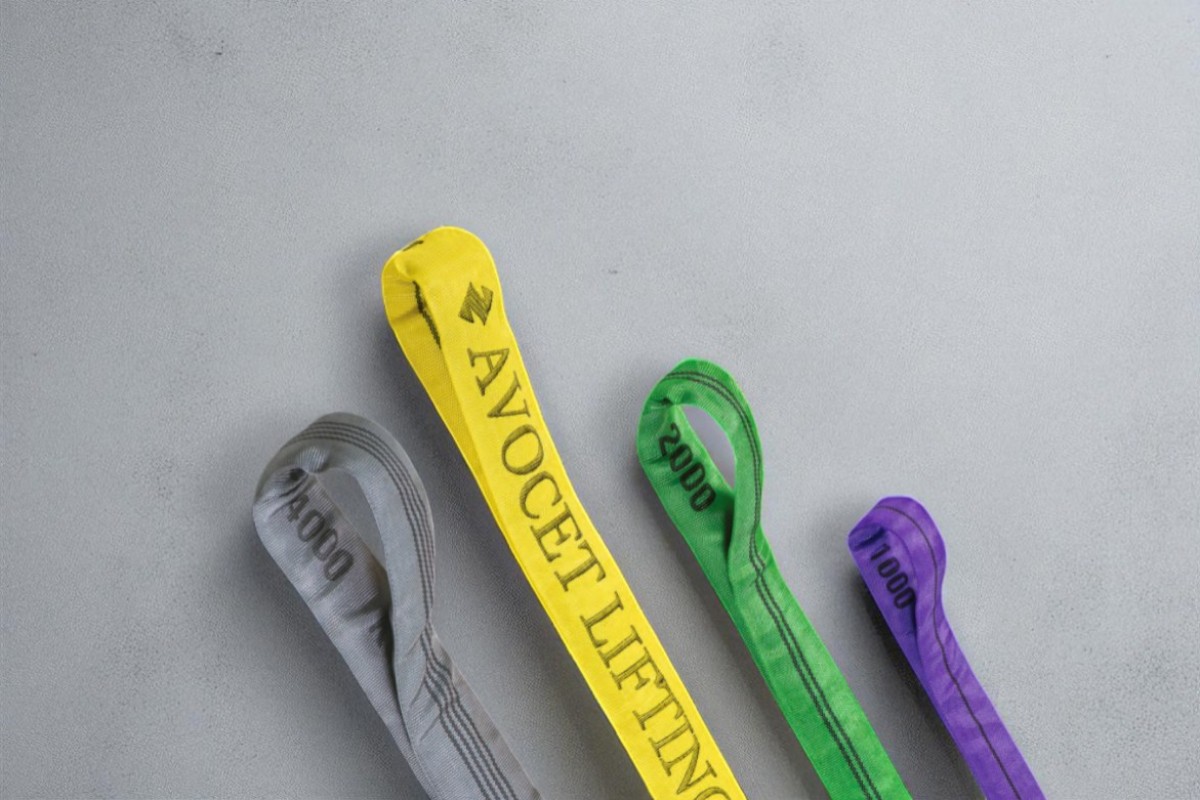

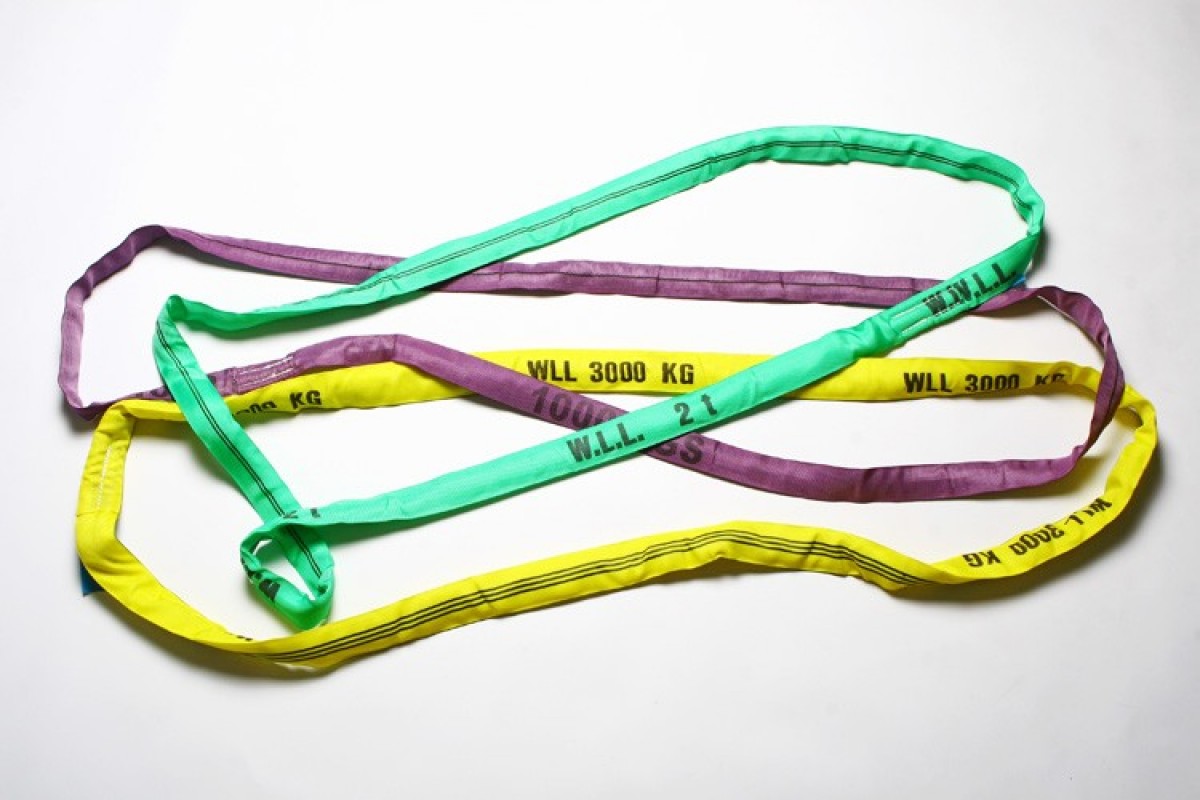

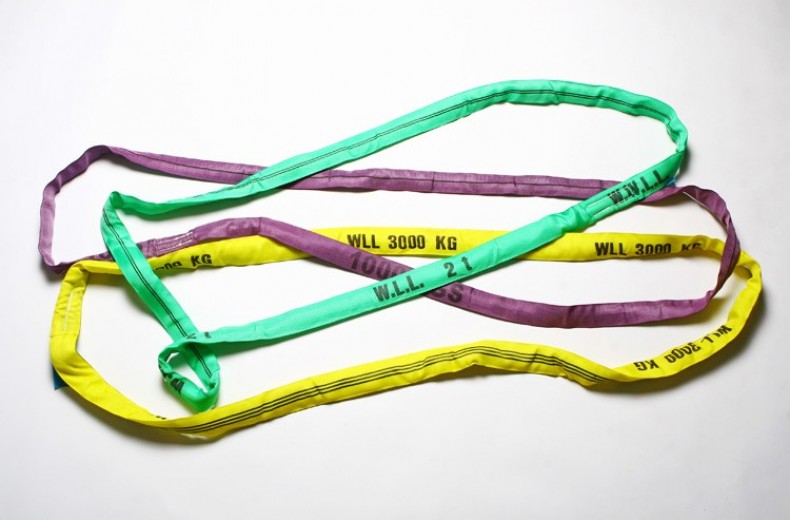

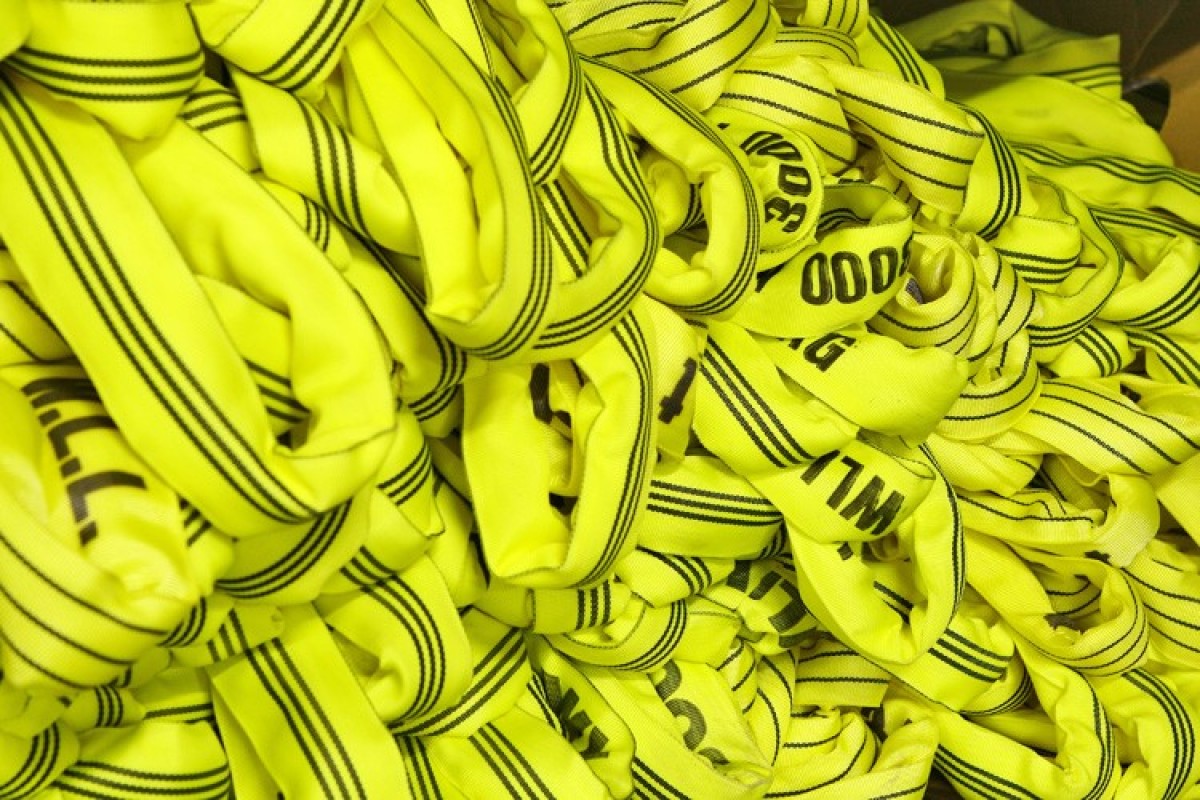

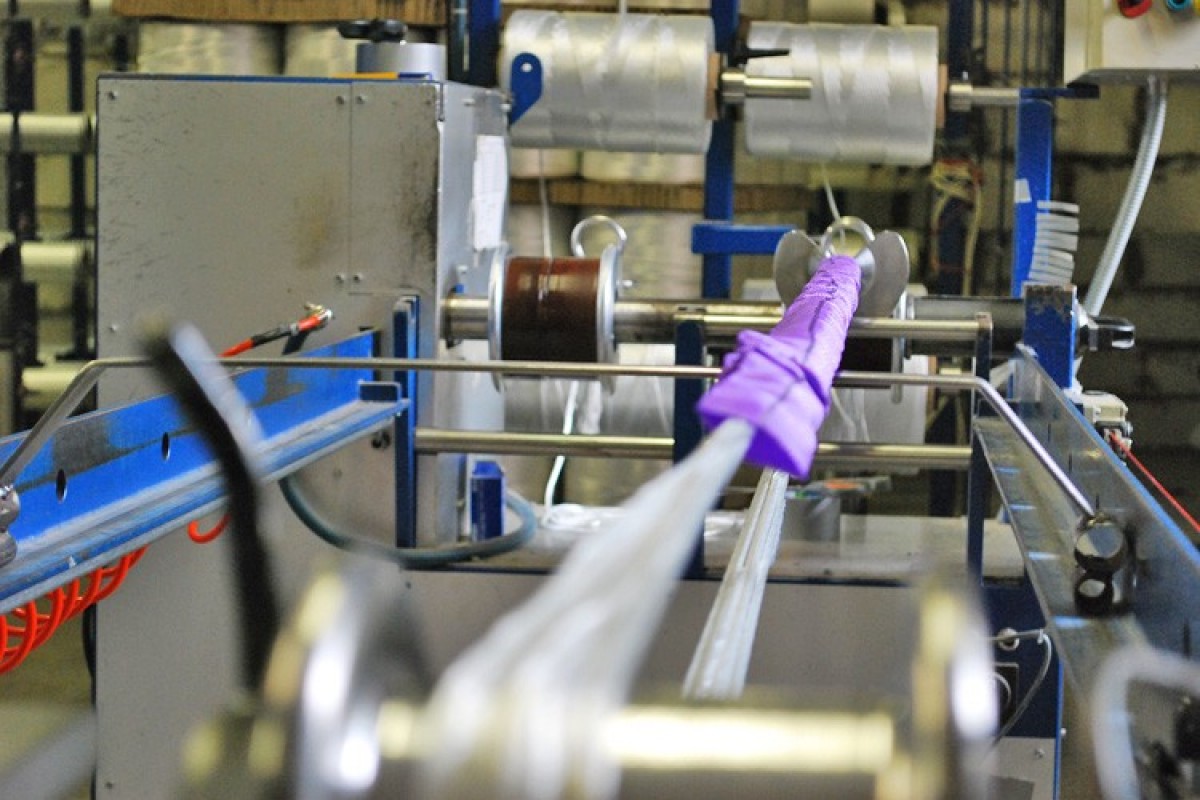

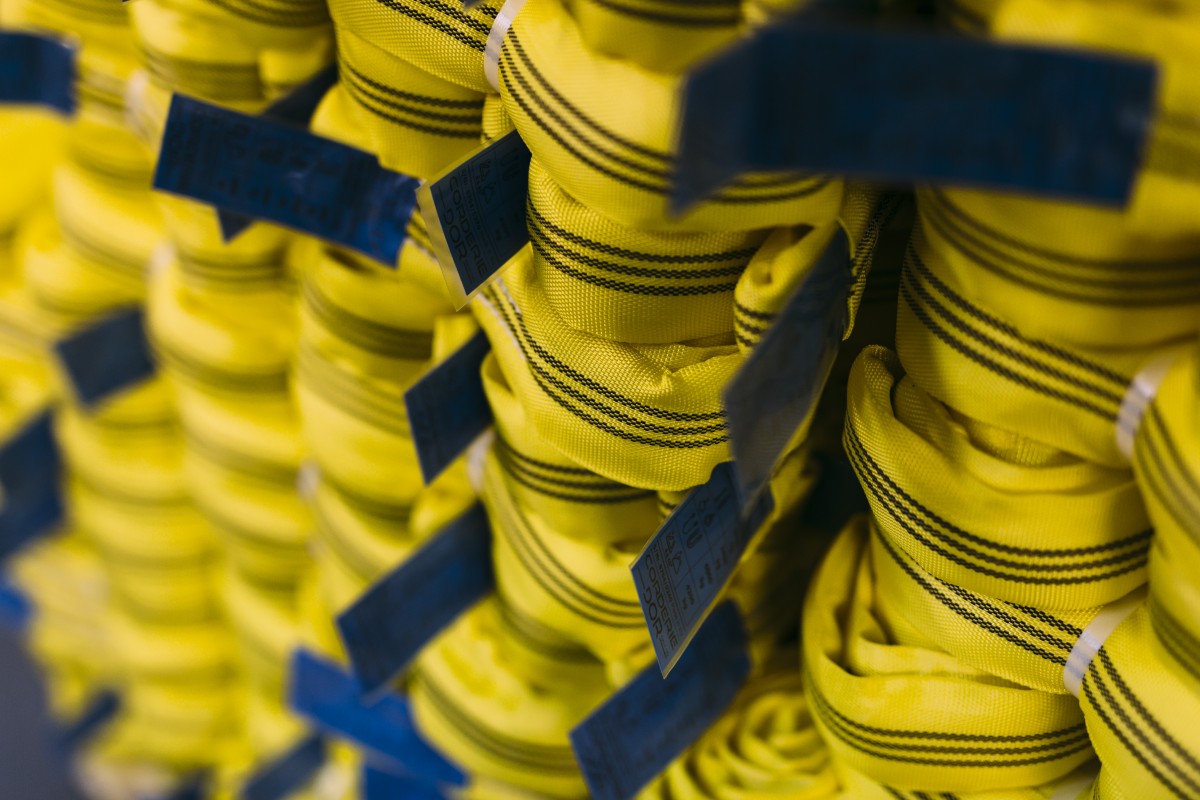

They are manufactured on the state-of-the-art Round Sling Winding Machine. They are widely sold and extensively used all over Europe. Slings made on this machine are more compact as the winding of the yarn is uniform and the tension on each yarn is constant. TRS are manufactured from 1 Ton to 10 Tons with a maximum effective working length of 10 meters. TRS use seamless polyester cover; the colour of which indicates the SWL/WLL. The number of black lines also denote the SWL/WLL of the sling.

Side-stitched Round Slings, Safety factor 7:1

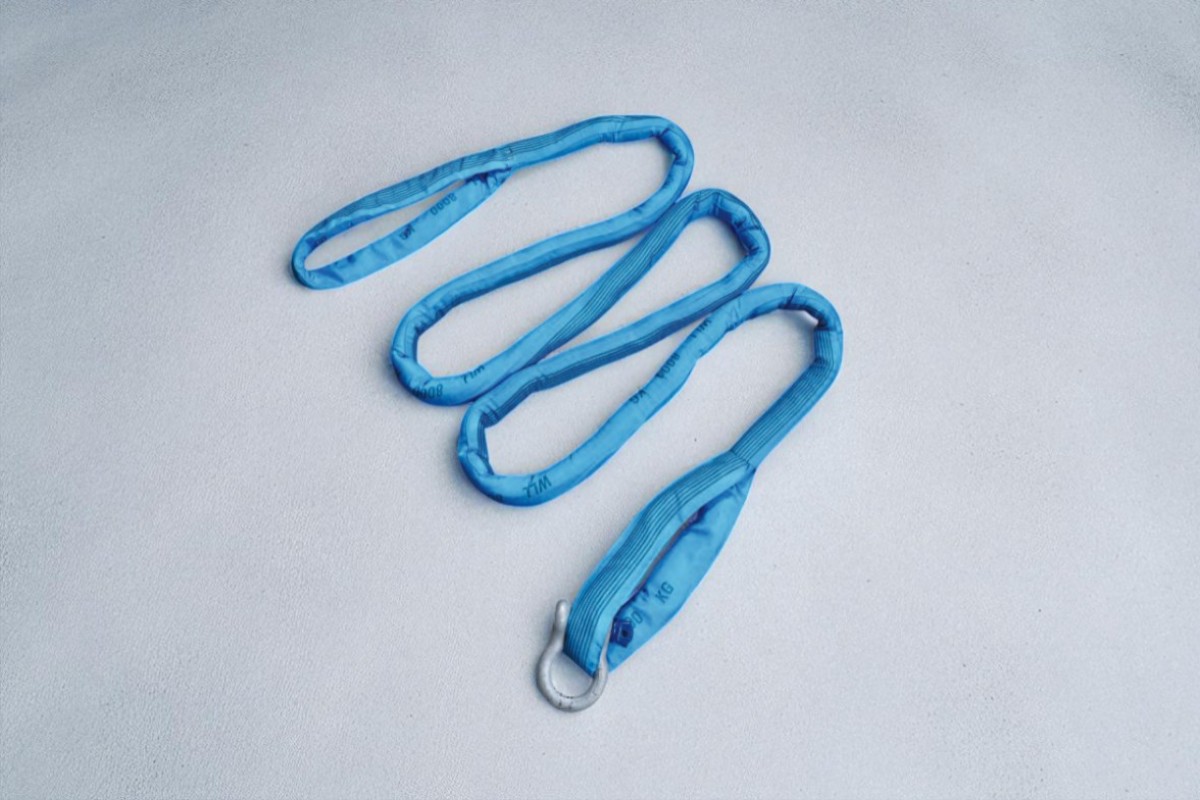

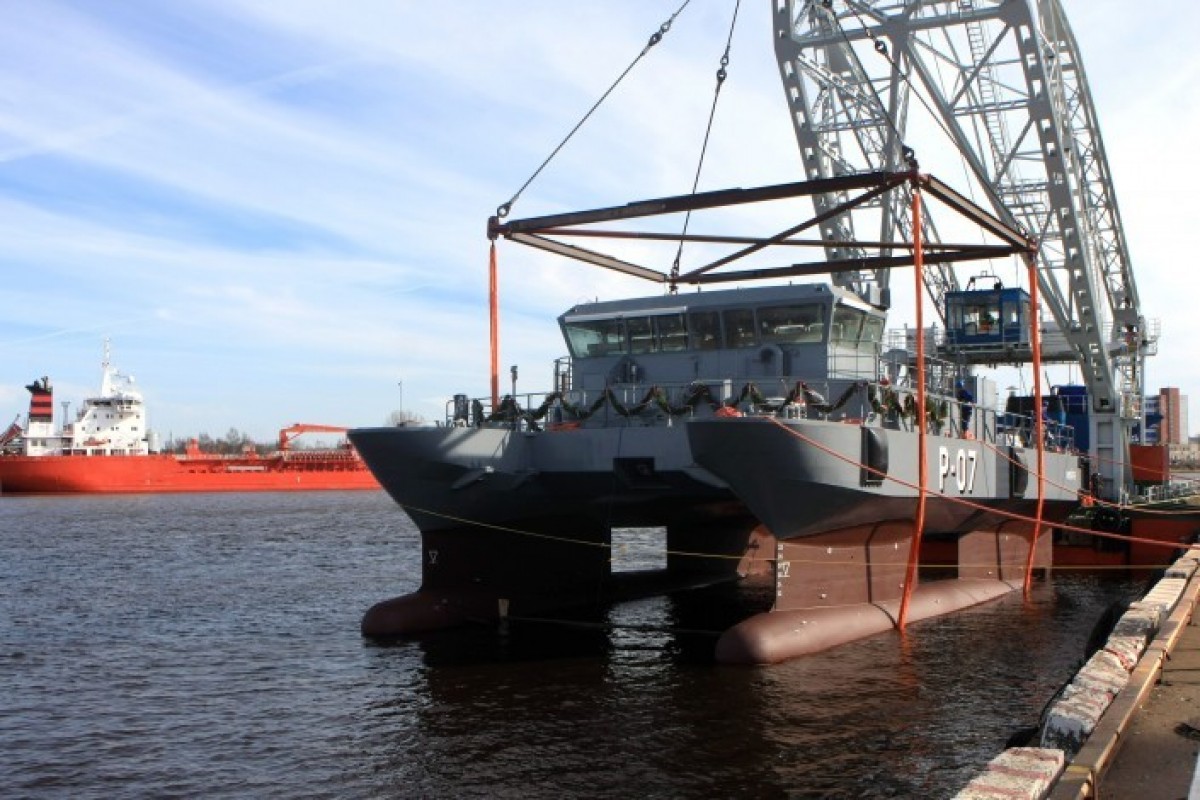

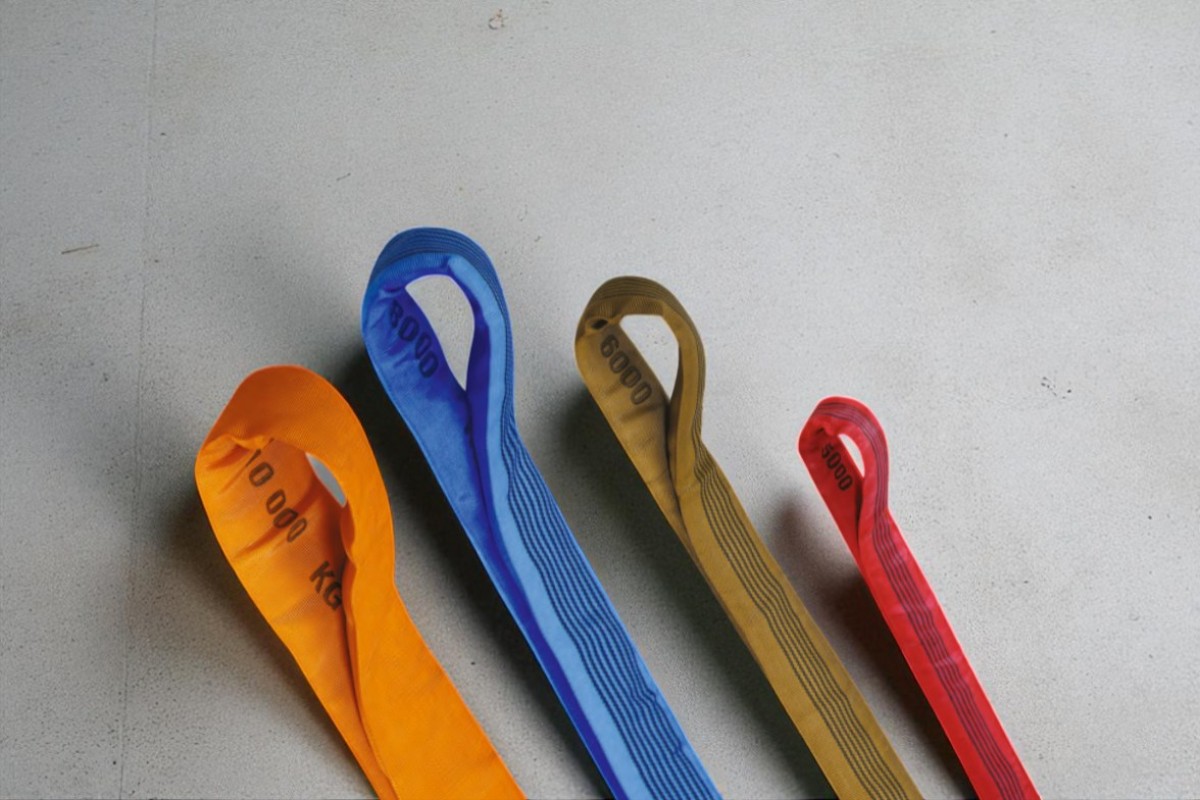

Special size round slings with very high capacity or extraordinary length are manufactured manually using high tenacity polyester yarns. Damaged webbing cover can also be re-stitched, giving a new life to the sling. Round slings up to 40 Tons are according to EN 1492-2. Round slings up to 150 Tons and to any length can be produced according to customer's request. Individual certificates provided with every Sling.

• All slings can be provided with polyester protective sleeve of any length.
• Two types of sleeves.

EN 1492-2 SF 7:1	ART. NR.	45-60°	+/-	0-45°	chocker
Violet	3100X	1000	2000	1400	800
Green	3200X	2000	4000	2800	1600
Yellow	3300X	3000	6000	4200	2400
Grey	3400X	4000	8000	5600	3200
Red	3500X	5000	10000	7000	4000
Brown	3600X	6000	12000	8400	4800
Blue	3800X	8000	16000	11200	6400
Orange	31000X	10000	20000	14000	8000
